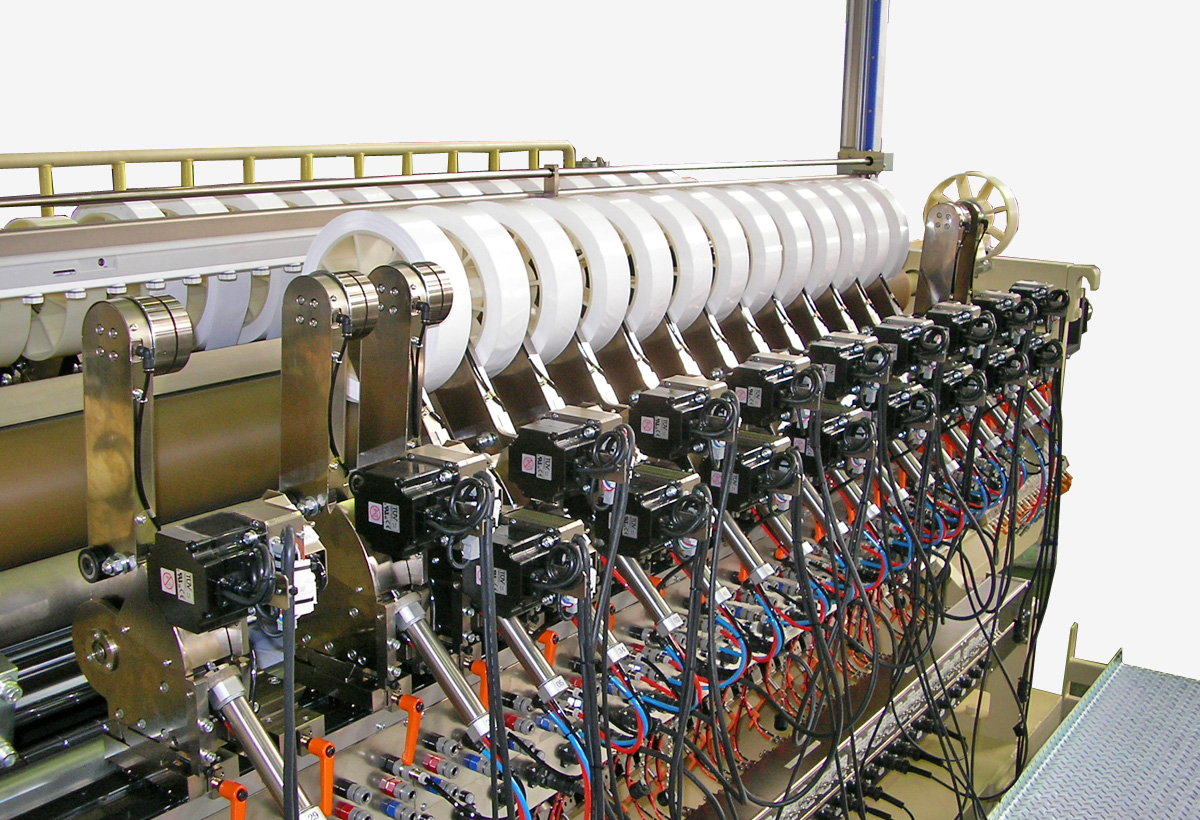

TH543C

TH543C

Applications: separator film

Features

  1. Combination of surface-driven and center-driven rewinding systems.
  2. Rewinding is performed with individual rewind arms driven separately by motors, which makes the machine maintenance-free.
  3. Possible to produce finished rolls directly from a primary, wide jumbo roll.

Technical Data

Material width Max. 2400 mm
Rewind diameter Max.φ350 mm
Rewind shaft OD φ3 inch,φ6 inch
Slitting width 35 – 650 mm
Machine speed 250 m/min.
Unwind diameter φ700 mm
Cutting method Wrapped razor cutting
Wrapped shear cutting
Rewinding method Rewinding with individual rewind arms driven separately by motors
