For PAPERSProducts

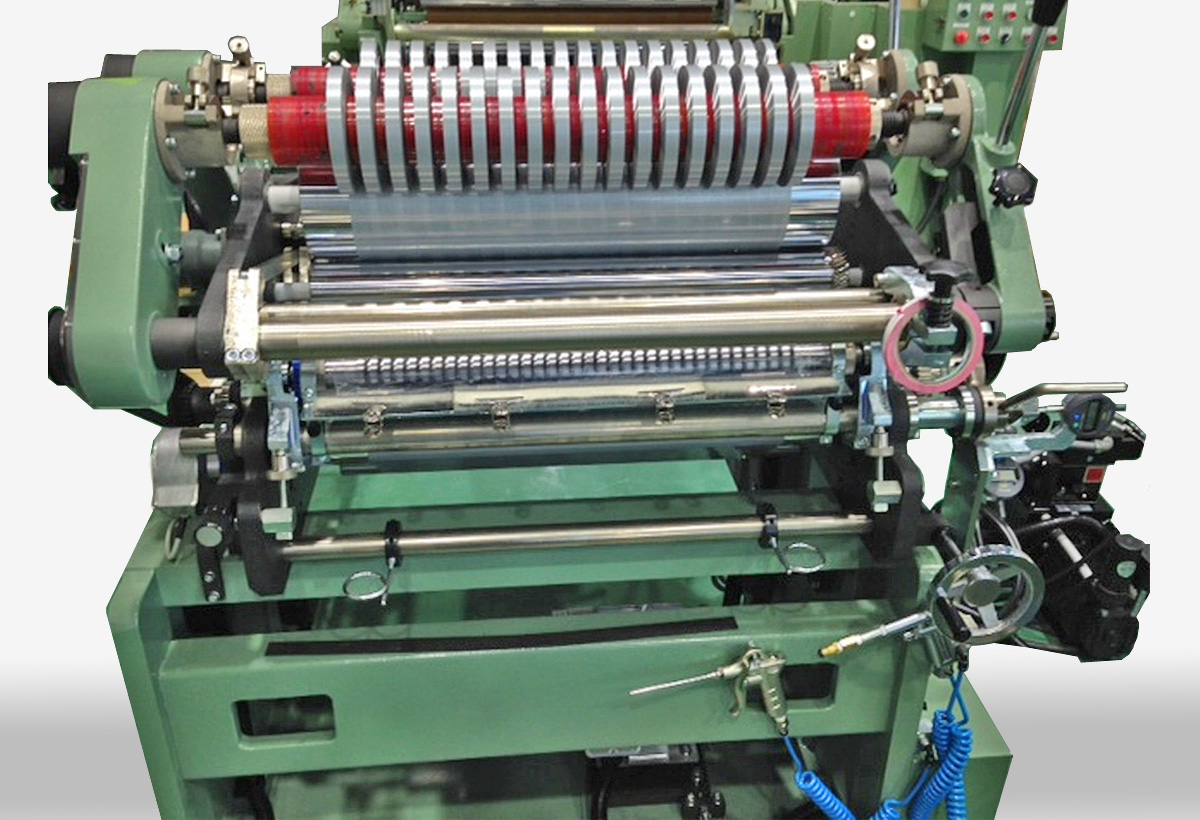

TB2
Applications: paper adhesive tape, PET adhesive tape, PVC adhesive tape
Features
- Appropriate rewind tension is automatically controlled by differential drive.
- Silicon-coated rubber roller is provided to deal with adhesive material.
- Thanks to the compact design, work efficiency of rewinding small rolls is improved.
Technical Data
| Material width | 650 mm |
|---|---|
| Rewind diameter | Max.φ300 mm |
| Rewind shaft OD | φ3 inch |
| Slitting width | Min. 10 mm |
| Machine speed | 120 m/min. |
| Unwind diameter | φ300 mm |
| Cutting method | Wrapped shear cutting |
| Rewinding method | Controlled by differential drive |
