For Nonferrous Metal FoilsProducts

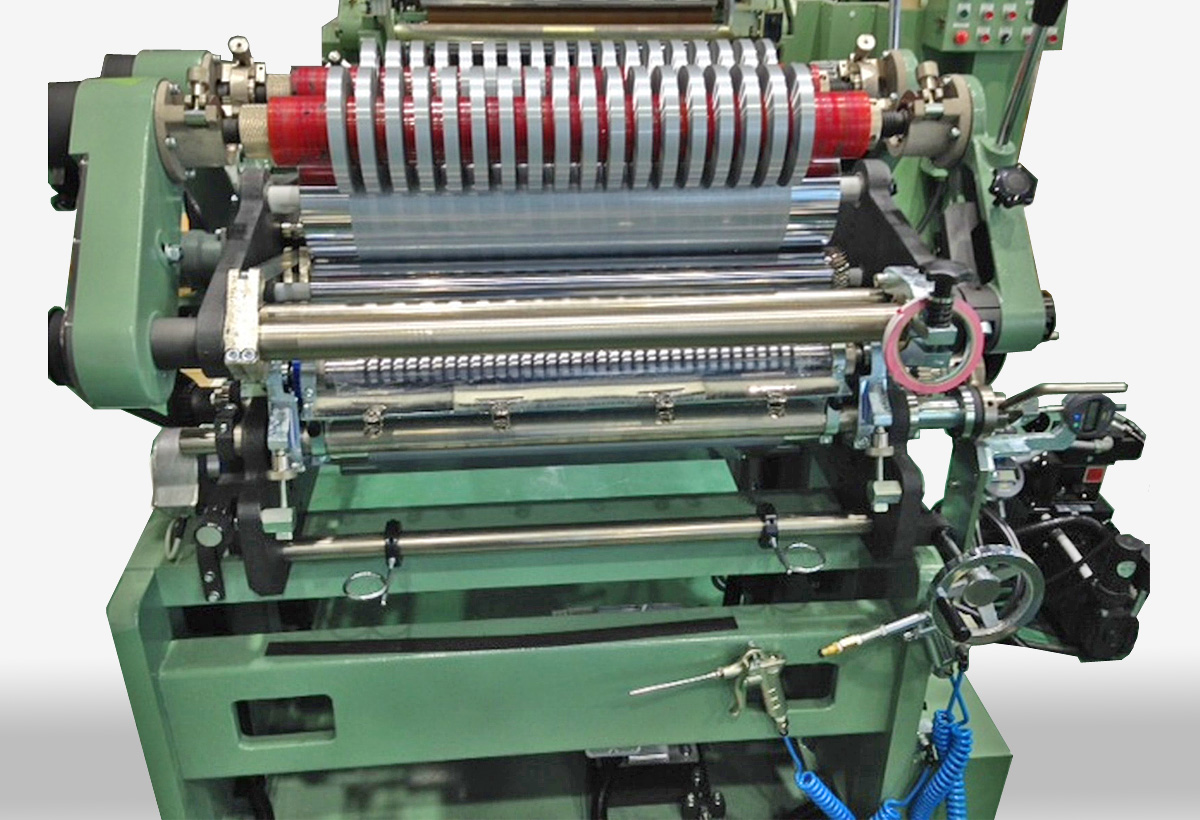

TB2
Applications: capacitor foil, anodized aluminum foil, aluminum carbon foil
Features
- Designed for dealing with anodized aluminum foil for capacitor application.
- Slitting width: min. 5.0 mm
- In spite of the small size, stable rewinding quality can be achieved with high rewind tension
Technical Data
| Material width | Max. 500 mm |
|---|---|
| Rewind diameter | Max.φ350 mm |
| Rewind shaft OD | φ38 mm |
| Slitting width | Min. 5 mm |
| Machine speed | 120 m/min. |
| Unwind diameter | φ600 mm |
| Cutting method | Wrapped shear cutting |
| Rewinding method |
