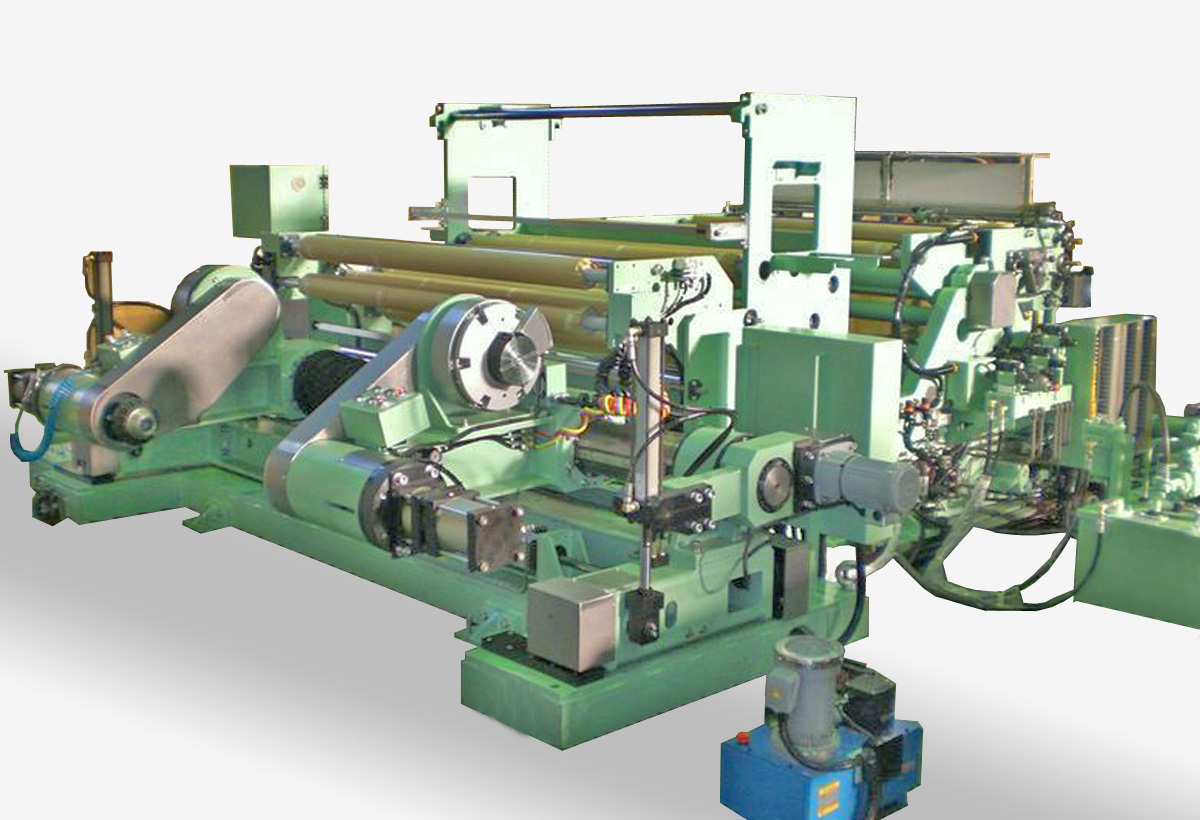

SL40A
Applications: label stock etc.
Features
- Appropriate rewind tension is automatically controlled by differential drive.
- Options: jumbo roll loading device, product unloading device
- Good rewinding quality is achieved for large finished rolls by a tracking gap rewinding method.
Technical Data
| Material width | 1300 mm |
|---|---|
| Rewind diameter | Max.φ1200 mm |
| Rewind shaft OD | φ3 inch |
| Slitting width | Min. 20 mm |
| Machine speed | 400 m/min. |
| Unwind diameter | φ1500 mm |
| Cutting method | Wrapped shear cutting |
| Rewinding method | Controlled by differential drive |
